Zendure

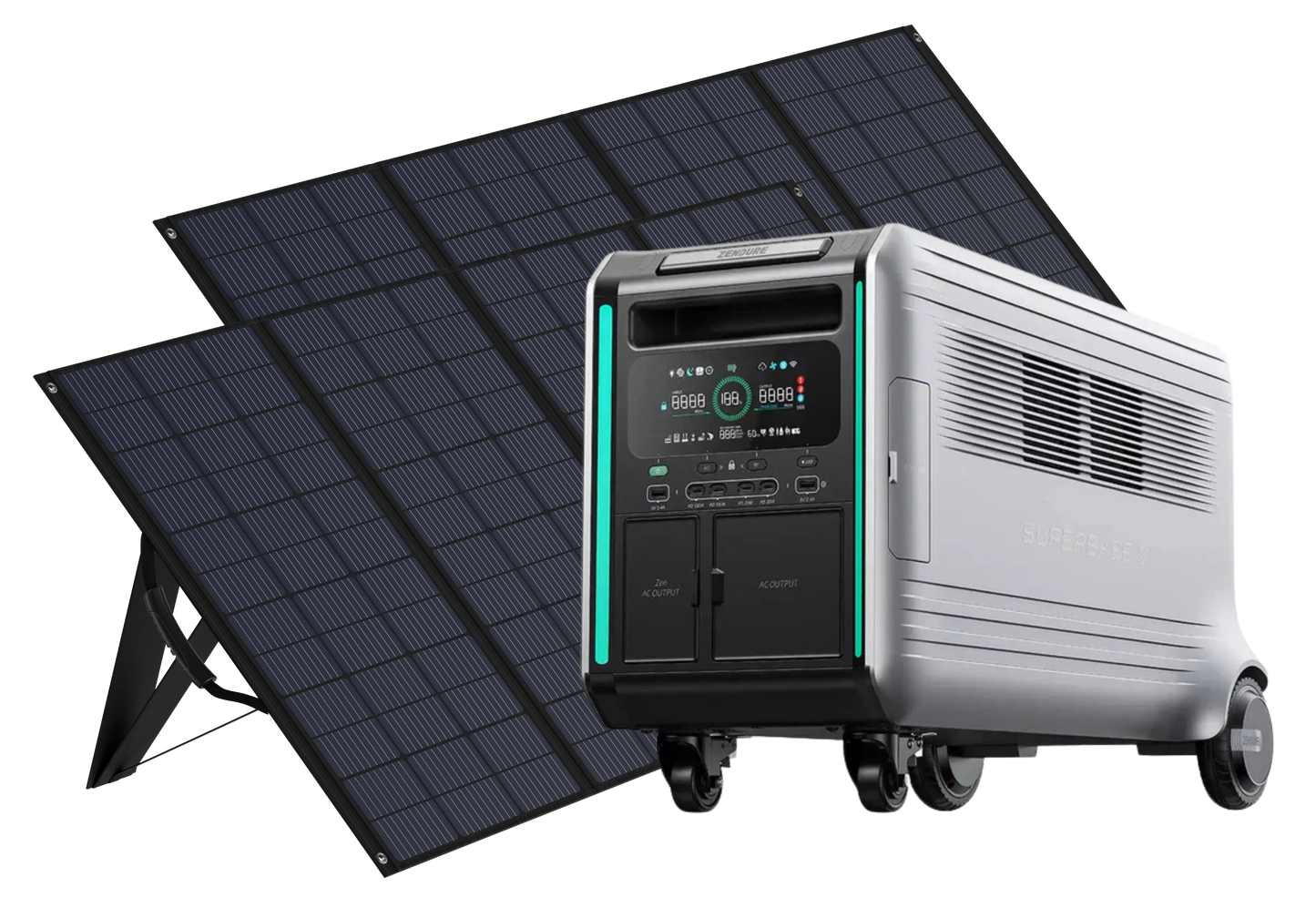

Zendure SuperBase V4600+ 400W Solar Panel (2) - Combo

Zendure SuperBase V4600+ 400W Solar Panel (2) - Combo

SKU: ZDSBV4600-gy-us +ZD400SP-MD-gy*2

Price: $4,097.00
List Price:
Price: $4,097.00

Introducing the SuperBase V 6.4kWh, the pioneering plug-and-play home energy storage system crafted for entire households. With its customizable energy ecosystem, user-centric design, and groundbreaking technology, the SuperBase V establishes a fresh benchmark in home energy storage. Notably, it showcases the world's premiere home energy storage system equipped with EV semi-solid state batteries, marking a significant advancement in sustainable energy solutions.

Zendure | Superbase V4600

What a Concept

SuperBase V introduces the pioneering plug-and-play solution for home energy storage, redefining the concept of household power. With its user-centric design and cutting-edge technology, SuperBase V establishes a fresh benchmark in home energy storage.

Zendure | Superbase V4600

Intelligent Energy Management

Our Home Panel integrates seamlessly with SuperBase V, linking it to your home's electrical system for comprehensive power distribution. The Zendure app offers essential features for monitoring, managing, and optimizing your energy consumption. With Zendure's Time of Use tools, you can effectively lower your energy expenses.

Zendure | Superbase V4600

EV-Grade Semi-Solid State Batteries

SuperBase V pioneers home energy storage with semi-solid state batteries, a global first. Boasting over 228Wh/kg, our semi-solid state batteries offer a remarkable 42% increase in energy density compared to lithium iron phosphate (LiFePO4) batteries. Enhanced by our proprietary battery management software, SuperBase V ensures an impressive internal battery lifespan of 10 years or more.

Zendure | Superbase V4600

6.4 to 64kWh Cpacity

The SuperBase V6400 boasts a storage capacity of 6.4 kWh (6,438Wh). With the maximum configuration, comprising two base units and eight Satellite Batteries, the total capacity reaches 64 kWh. This ample energy supply is sufficient to power a typical household for a week or more.

Zendure | Superbase V4600

3800W to 7600W AC Output

One SuperBase V can deliver up to 3,800W of power, while combining two units enables a total output of 7,600W. This ample power supply is capable of running essential household appliances such as washers, dryers, heaters, refrigerators, and more.

Zendure | Superbase V4600

3000W solar Input

SuperBase V has the capacity to harness up to 3,000W of solar power, facilitating a full charge of the main unit within 2 to 3 hours. While we provide our own solar panels, SuperBase V seamlessly integrates with various solar panels from 12V to 150V, enabling easy integration into your current solar setup.

Zendure | Superbase V4600

A Full Charge in 2 Hours

You have the flexibility to charge SuperBase V from either a 120V or 240V outlet AC. When connected to a 240V outlet, SuperBase V can pull 3,600W at its AC input, significantly reducing the recharge time to about 2 hours.
Zendure | Superbase V4600

Plug-and-Play Energy Storage/Use



Home batteries often pose challenges due to their weight. SuperBase V innovatively integrates motorized rear wheels, easing the burden of transportation. With a simple pull of the handle, experience effortless portability, even on uneven terrains.

Zendure | Superbase V4600

  • SuperBase V is made for

  • Power Independence
  • 3800W-7600W AC Output
  • 6600W Recharge MAX
  • Emergency Backup
  • 120V/240V Dual Voltage

    If your home or worksite includes 240V appliances or power tools, you need an energy storage system capable of high-voltage output. And while other products on the market can provide 120V or 240V, SuperBase V is the first and only system that can supply both at the same time, from a single base unit, thanks to our patented GridFlow 2.0 Real-Time Bidirectional Inverting Technology. This also makes 240V on the road a reality, making it an ideal worksite companion.

    3800W-7600W AC Output

    A single SuperBase V can provide up to 3,800W of power, and two units can be connected together to provide up to 7,600W. That's enough power to supply a typical household with a washer, dryer, heater, refrigerator and more.
  • EV
  • Level-2 Fast Charge
  • Home panel with 2 EV Outlets

    With 2 EV outlets (integrated 14-50 and 6-20 EV outlets) and up to 12,000W of power distribution*, you can quickly charge two electric vehicles at the same time.



  • Outdoor LifeMotorized Wheels
  • RV Life
  • 3000W Solar Input

    SuperBase V can charge up to 3,000 W using solar power alone. This is enough to fully charge the main unit in 2 to 3 hours. While we offer our own solar panels, SuperBase V is compatible with a wide range of other manufacturers' solar panels from 12V to 150V and can be easily integrated into your existing solar system

WHAT'S INCLUDED

SUPERBASE V6400 POWER STATION

  • 1 x Zendure SuperBase V6400 Power Station
  • 1 x Satellite Battery Cable
  • 1 x AC Cable 1.5M
  • 1 x Car Charging Cable 1.5M
  • 1 x Accessory Pouch
  • 1 x User Manual

400W SOLAR PANEL

  • 1 x Zendure 400W Solar Panel
  • 1 x User Manual

ZENDURE SUPERBASE V SOLAR GENERATOR SPECIFICATIONS

SUPERBASE V6400

SUPERBASE V4600

Capacity

 6,438Wh
(Semi-Solid State)		 4,608Wh
(LiFePO4)
Dimensions 28.7 x 13.6 x 17.4 in
73 x 32 x 44.7 cm		 28.7 x 13.6 x 17.4
73 x 32 x 44.7 cm
Weight
 		30 lbs
59 kg		 121 lbs
55kg
Extra Satellite Batteries One (1) SuperBase V6400
accepts up to
4 Batteries
1 Battery = 12.876kWh
2 Batteries = 19.314kWh
3 Batteries = 25.752kWh
4 Batteries = 32.190kWh

Two (2) SuperBase V6400
+ Eight (8) x
B6400 Batteries = 64.380kWh		 One (1) SuperBase V4600
accepts up to
4 Batteries
1 Battery = 9.2167kWh
2 Batteries = 13.824kWh
3 Batteries = 18.432kWh
4 Batteries = 23.040kWh

Two (2) SuperBase V4600
+ Eight (8) x
B4600 Batteries = 46.080kWh
AC Input
 1,800W 120V;
3,600W 240V		 1,800W 120V;
600W 240V
Solar Input
 XT90 x 1:
3,000W 10-150Voc		 XT90 x 1:
3,000W 10-150Voc
Car Input XT90 x 1:
12/24V, 10A		 XT90 x 1:
12/24V, 10A
Battery Input
 Yes Yes
EV Input ZenT2 Port ZenT2 Port
120V AC Output 4 x 5-20:
15A 1,800W Max		 4 x 5-20:
15A 1,800W Max
240V AC Output 1 x 6-20:
16A 3,800W Max		 1 x 6-20:
16A 3,800W Max
TT 30A AC Output 1 x TT-30:
30A 3,600W Max (120V AC)		 1 x TT-30:
30A 3,600W Max (120V AC)
Car Output 1 x Car Outlet:
12.6V/10A Max		 1 x Car Outlet:
12.6V/10A Max
Anderson Port 1 x Andersen: 12.6V/30A 1 x Andersen: 12.6V/30A
DC Output 2 x DC5521: 12.6V/3A Max 2 x DC5521: 12.6V/3A Max
USB-A Output USB-A (1) (2)：5V/2.4A total USB-A (1) (2)：5V/2.4A total
USB-C Output (100W) USB-C (1)/(2):
5V-20V, 100W Max each		 USB-C (1)/(2):
5V-20V, 100W Max each
USB-C Output (20W) USB-C(3)/(4):
5V-12V, 20W Max each		 USB-C(3)/(4):
5V-12V, 20W Max each
Charge Temperature -20°C to 45°C 0℃ to 45℃
Discharge Temperature
 -20°C to 45°C -20°C to 45°C
Connection Type WIFI/Bluetooth WIFI/Bluetooth
Smart App Compatible Yes Yes

SUPERBASE V6400

SUPERBASE V4600
Color Gray Gray
Capacity 6438Wh
(Semi-Solid State）		 4608Wh
(LiFePO4）
Dimensions 69 x 28.5 x 27.4cm 69 x 28.5 x 27.4cm
Weight 101lbs (46kg) 93lbs (42kg)
XT90 Input 12-150V⎓10A,
600W Max		 12-150V⎓10A,
600W Max
USB-A Firmware Update Firmware Update
Car Outlet Output 12.6V⎓10A 12.6V⎓10A
Andersen Output 12.6V⎓30A, 378W Max 12.6V⎓30A, 378W Max
XT90 Outlet Output 12-60V⎓10A, 600W Max
 2-60V⎓10A, 600W Max
LED Light RGB; Lighting RGB; Lighting
Smartphone Application Compatible Compatible
In The Box Handle Cover
MC4 to XT90 cable		 Handle Cover
MC4 to XT90 cable



ZENDURE 400W SOLAR PANEL (2)

  • Color: Black
  •  Rated Power：400W
  •  Voltage(Vmp): 40V
  •  Current(Imp):10A
  •  Open circuit Voltage: 49.4V
  •  Connector: MC4 1M
  •  Kickstand: ×4, adjustable
  •  Weight: 13.6KG
  •  Unfolded Dimension: 100*224*2.5CM
  • Folded Dimension: 100*54.7*5.7CM
  •  Waterproof Level: IP54 (solar cells IP65)
  •  Operating Temperature: -10℃ ~ 65℃
  •  Conversion Rate: ≥22%
